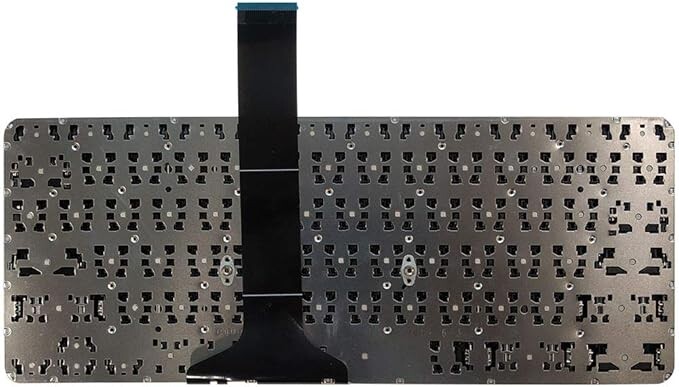

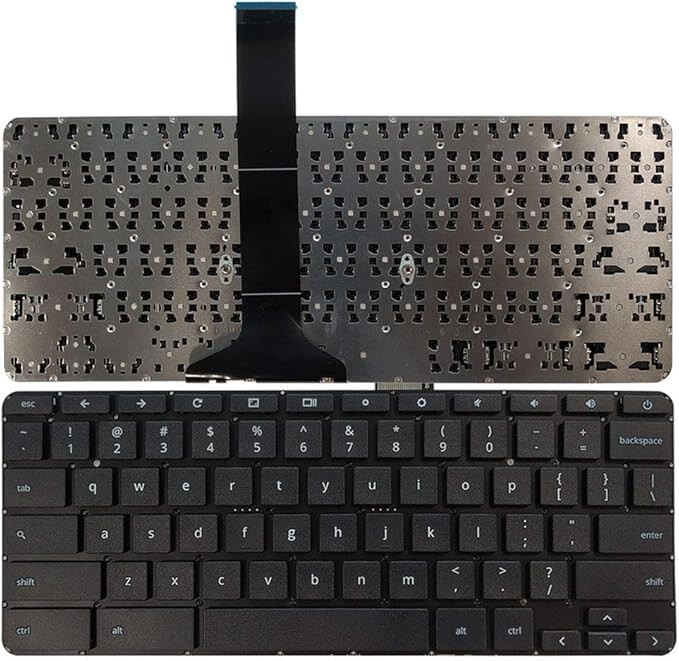

Keyboard for HP Chromebook 11-G4 US Layout
This guide will walk you through the replacement process of a defective or broken keyboard on your HP Chromebook 11 G4. Removing the keyboard is also the basic step to accessing all of the other internal components.
Position the closed Chromebook with the rubber pads are facing up.
Slide the flat end of the spudger under the rubber pads at the upper right-hand and the upper left-hand corners.
Pry off the rubber pads to reveal a screw under each pad.
The rubber pads are attached with a strong adhesive. The force applied may damage
HP Chromebook 11 G4 Keyboard Replacement: step 3, image 2 of 2
Remove the eleven 6mm Phillips #1 screw
Flip over the Chromebook and open it.
Step 5
HP Chromebook 11 G4 Keyboard Replacement: step 5
Insert the flat end of the spudger between the bottom body of the Chromebook and keyboard body.
Slide the spudger along the gap, applying downward pressure to separate the two components.
You should hear popping sounds as you slide the spudger along the edge.
If the spudger gets stuck while sliding, simply slide the spudger back for a bit, and continue sliding forward.
Step 6
HP Chromebook 11 G4 Keyboard Replacement: step 6, image 1 of 1
Lift the bottom of the keyboard assembly to reveal the internal components of the device.
Step 7
HP Chromebook 11 G4 Keyboard Replacement: step 7, image 1 of 3
Use the pointed end of the spudger to flip up the black tabs on the two ZIF connectors located on the motherboard.
Disconnect the ribbon cables from the motherboard by gently sliding them out of their sockets.
Step 8
HP Chromebook 11 G4 Keyboard Replacement: step 8, image 1 of 1
Remove the keyboard assembly by lifting it off the laptop base.
